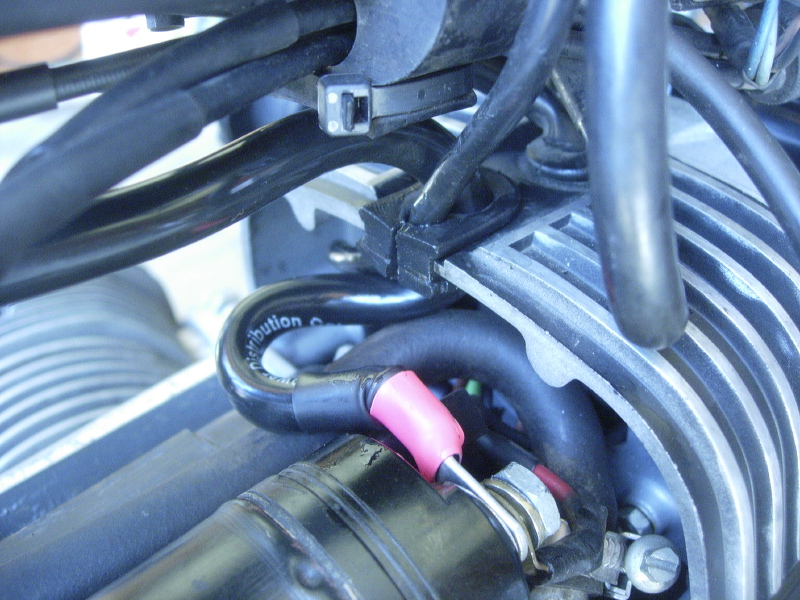

Dress the lead through the grommet and dress it around for minimum tension of any points. You can put the bestside of the grommet out as the top side often cracks with the inside in better condition.

As you dress it back along the frame, you can remove the jumper between the coils to get it up higher under the tank (don't forget to reinstall the jumper). There is sufficient length to go around the upper fin on the starter cover. Use the tiewraps to dress it for best appearance and to minimize any stress along it's length.
