Step by Step Install Guide for Aprilia All Tuono / Mille

Bring the HICAP starter lead down to the right front of the bike.

Install the HICAP terminal boot onto the terminal and slide it back for access to the eyelet.

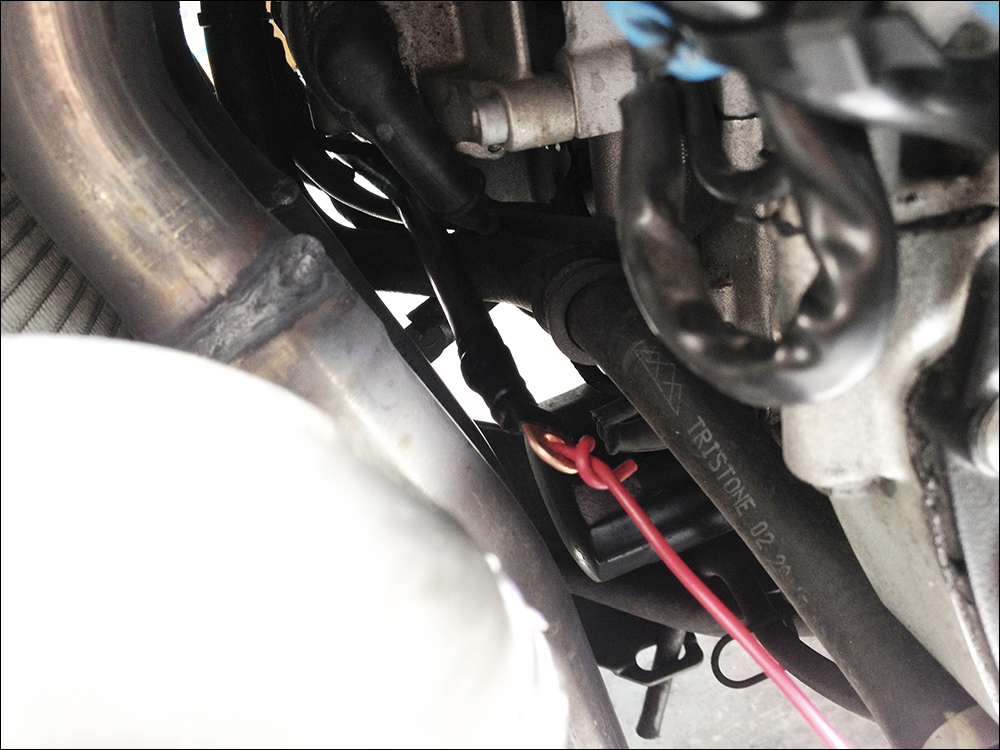

Tiewrap the blanked off OEM lead to the HICAP lead and wrap the fish wire around the HICAP eyelet.

Use the fish wire from the left side of the bike to pull the 2 leads into position.

Mount the HICAP terminal onto the starter and position the terminal boot.

Tiewrap the blanked off OEM lead to the hose marked Tristone in the photo shown here.

Since it is not active in any way it can just remain in place with no harm done.

This is page 21 of 26 pages of the  Step by Step Install Guide
